Battery replacement for infrared sensors (black rectangles)

Battery replacement for infrared sensors (black rectangles)

Required equipment

  • 1 cross-head screwdriver
  • 4 LR6 (AA) batteries for each pair of sensors
The batteries have to be new, bought recently, and preferably all from the same brand.
This partly determines the quality of the counting data. If this condition is not respected, Affluences cannot ensure the reliability of the counting equipment.

Replacement of the batteries

1. Unscrewing

Unscrew the screw at the bottom center of the counter.

2. Removing the lid

Remove the lid by pulling up the bottom part.

3. Replacing the batteries

Place the batteries in and make sure they are in the right +/- position.


Important:
After changing the batteries in the PT sensor, press the activate button

4. Placing back the lid

Place the lid back on, starting with the top side where there is a notch inside. Then slide the bottom part back into place.

5. Repeating the operation

Repeat these steps on the second box.

6. Rebooting

Unplug the data collector and plug it back again to restart the system.

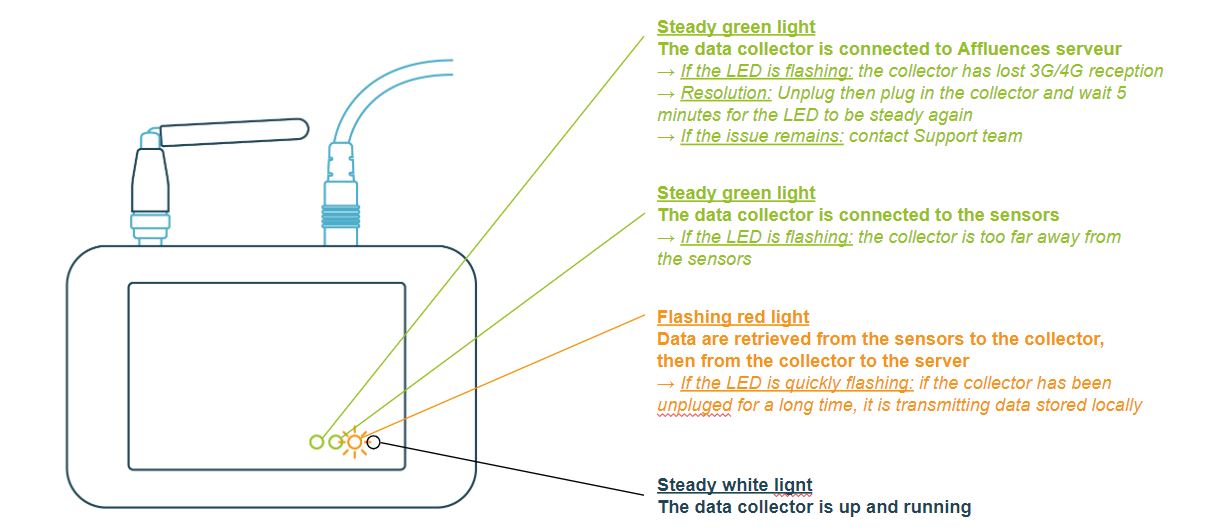

7. LED statuses


8. Contacting the support team

Inform support team that the intervention took place by sending an email at support@affluences.com.
