AI sensors (R version) - Technical manual

Presentation

The IA sensor (version R) is a people counting device. Placed high up, it detects and analyses the shapes in its "field of vision", identifies those that are human-like, counts them and then transmits the counting data to the Affluences servers.

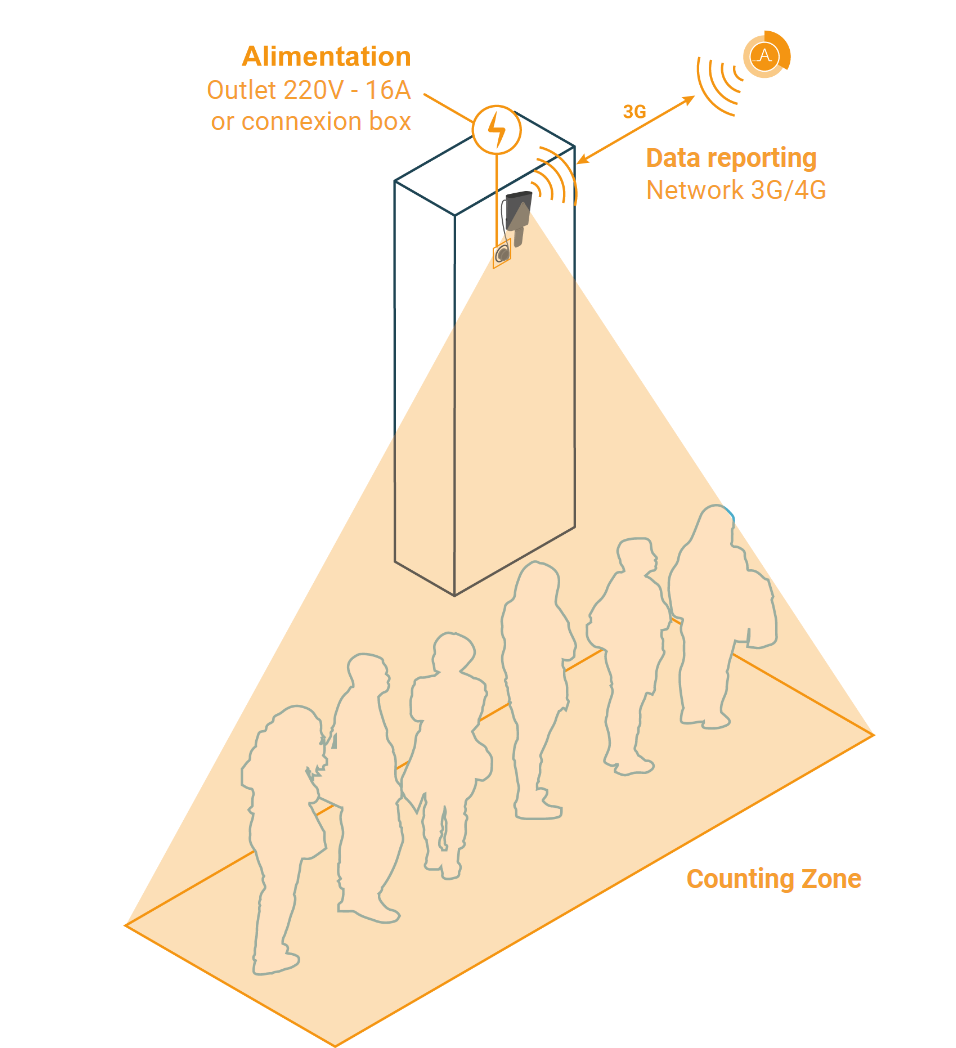

Operating diagram

Technical specifications

IA sensor (version R) - Technical manual
Technology	Local algorithmic image processing on the fly (computer vision)
Siz of the counting zone Proportional to distance	Single Camera	62° x 48°
	Wide angle	120°
Installation	Conditions	Positioned high up on the edge of the area to be counted
	Distance from zone	1 to 50m
	Minimum height	2,20m
Power supply	Without transformer	- Electrical connection 5V / 3A (15W) - PoE
	With transformer	Electrical connection 230V
Dimensions (L x W x h)	Single case	- 90×70×24mm
	Waterproof case	- IP67 : 170x130x45mm
Weight	Single case	85g
	Waterproof case	500g
	Support	300g
Hook	Fixing on any type of support
Counting data	Recovery	3G/4G mobile network or Ethernet
	Internal storage capacity	25 days
Couleur Customised as required	Single case                                                                                          - Black
	Waterproof case	- IP67 : Anthracite grey

Prerequisites

Environment

1. Power supply or PoE available
2. Minimum installation height of 2.20 m
3. The area to be analysed must be sufficiently bright (> 50 lux)
4. The view in front of the camera must be unobstructed. Check that there is no equipment or installations that could impede visibility during counting.
5. The measurement zone must be entirely within the sensor's field of vision (maximum distance of 50m).

Data to be specified by the customer

1. Fixing method for ball joint support :
1. Wall mounting (standard)
2. Plate with hoops for post
2. 220V connection :
1. Cable length :
1. Indoor version sensor: 1.5m (cannot be modified)
2. Waterproof version sensor: 80cm (standard) or custom length
2. Connection method :
1. 2P+T male plug (Standard)
2. Bare cable


Installation

On-site installation

1. Mounting the sensor and adjusting the viewing angle
2. Connection to the electricity network
3. Check data recovery and correction if necessary


Post-installation follow-up (1 week)

1. (Remote) hardware calibration, model validation and data consistency checks
2. Sensor commissioning


Single box (interior)

The 3G connection key can either be plugged directly into the box (as shown below), or fixed to the bracket for an even more compact look.



Appearance, dimensions and installation example of an IA-R sensor

Waterproof case

If the sensor is installed outdoors or exposed to the elements, it is housed in an IP67-rated waterproof casing for greater resistance to dust, water and moisture intrusion.

The IA sensor (version R) is integrated directly into the waterproof casing with its transformer connected to a 230V power supply or PoE cable.

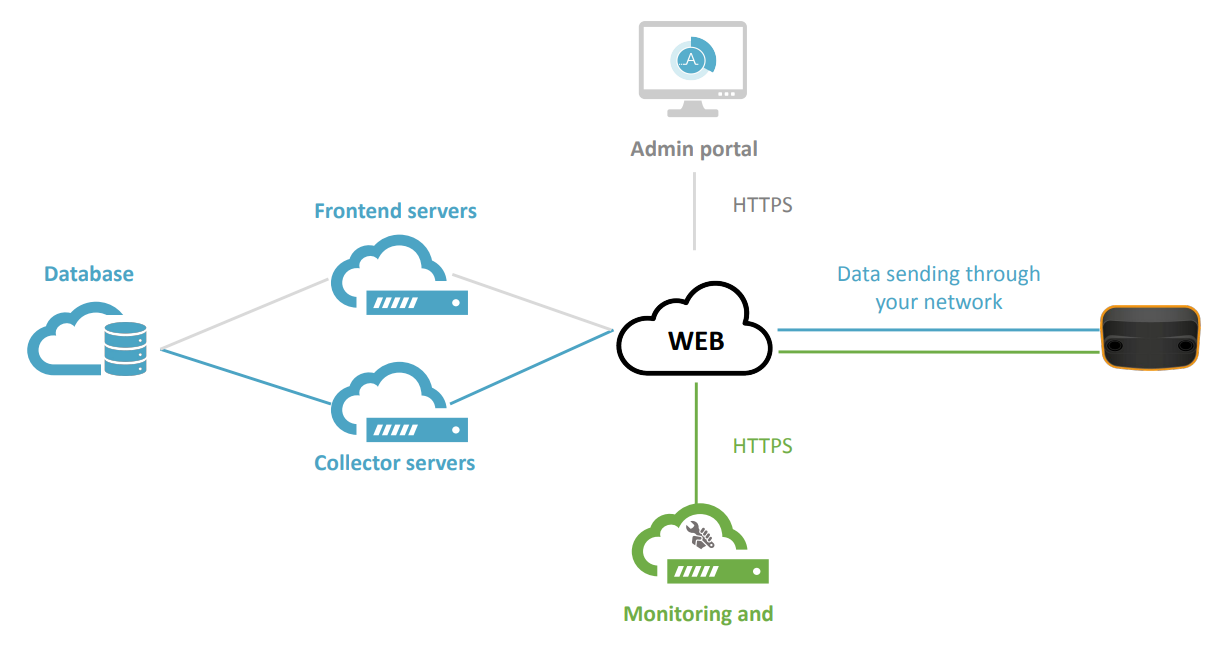

Technical architecture diagram

CNIL and RGPD compliance

The IA sensors (version R) implemented by Affluences comply with CNIL and RGPD regulations.

The logic analysis and sensoring unit is built directly into the sensor, and the data streams captured are processed locally on the fly.

The only data stored and sent to the Affluences servers and databases is numerical count data (e.g. 15 people at 11.05am).
