Taking photos for a technical study
Pictures taken from the inside of the area

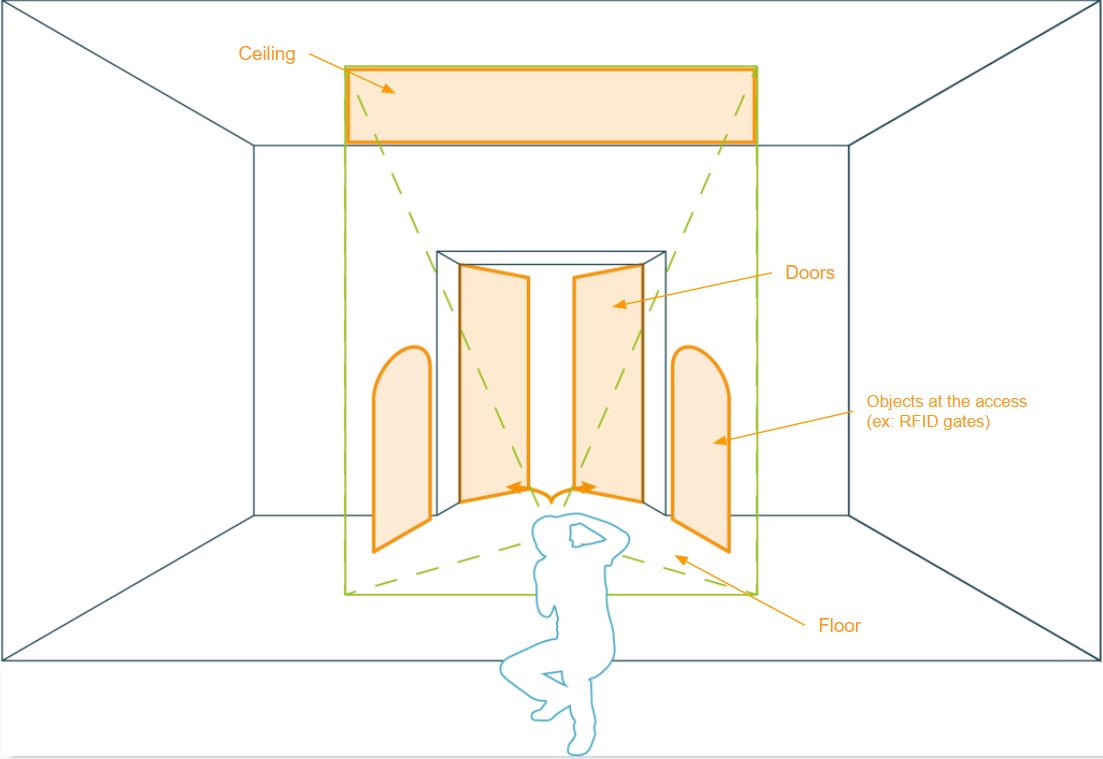

Context pictures - facing the access
Show
the context by taking a photo from the inside, facing the access, and
trying to include as many elements as possible. Affluences offers
several solutions depending on your needs, so a picture of the context
will enable our technical team in charge of installations to make the
best suggestion for the access of your facilities.
Some of our solutions can be implemented on ceilings, on pieces of architecture, or on cable rails and ducts. Don't forget to include them in the context pictures.
Examples of pictures :

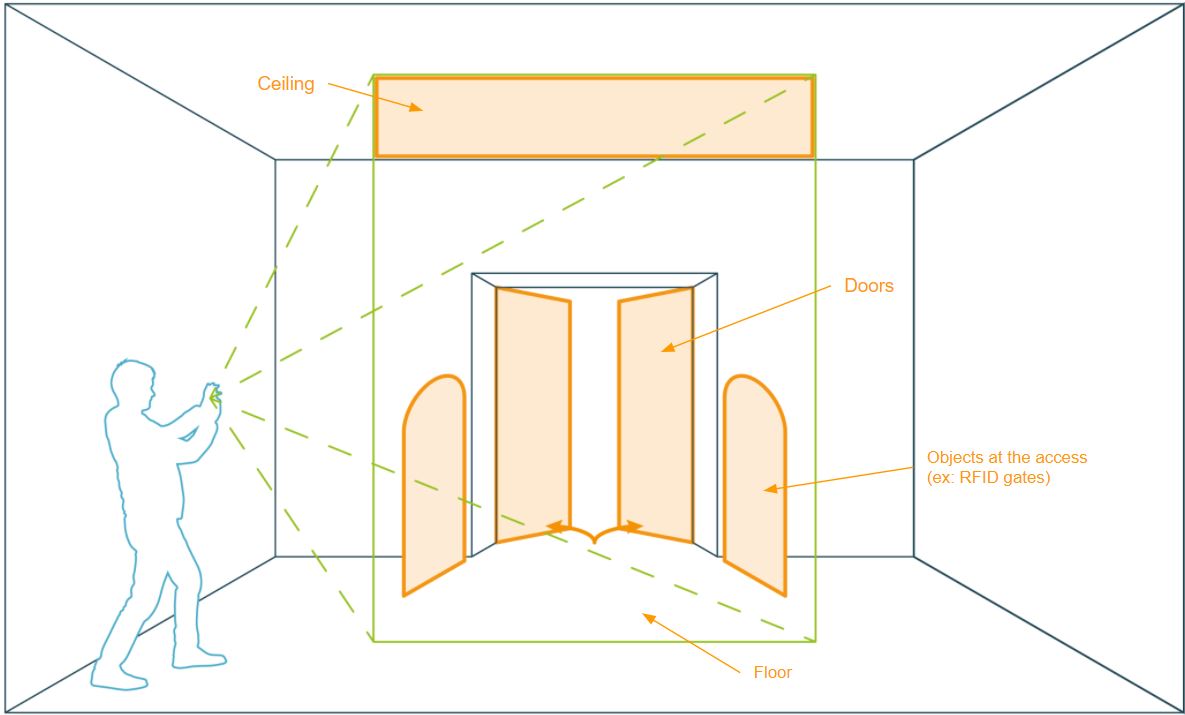

Side pictures
Three-quarter photos provide details of the spatial arrangement and the thickness of objects. They also show elements that might have been hidden in the front view.
If the access way contains doors, please indicate the direction in which they open so that we can adapt the placement of the suggested solution accordingly.
Important elements to show :
- The position of the security gates
- The position of the turnstiles
- The position of the furniture around the access way
- The thickness of the doorframe and surfaces
Example :
Pictures taken from the outside
Context pictures - facing the access
Our solutions can also be installed outside of the counted areas. A context view of the counted area from the exterior will enable our technical team to suggest a solution tailored to your needs.
As with the interior context view, if this area also contains a ceiling, pieces of architecture or rails and cable ducts, please include them in the context picture.
Examples of photos :
Side pictures - Exterior
As with the interior photos, the exterior three-quarter photos provide details of the spatial arrangement and the thickness of objects. They also allow to show elements that might have been hidden in the front view.
If the access way contains doors, please indicate the direction in which they open so that we can adapt the placement of the suggested solution accordingly.
Example for photos :
